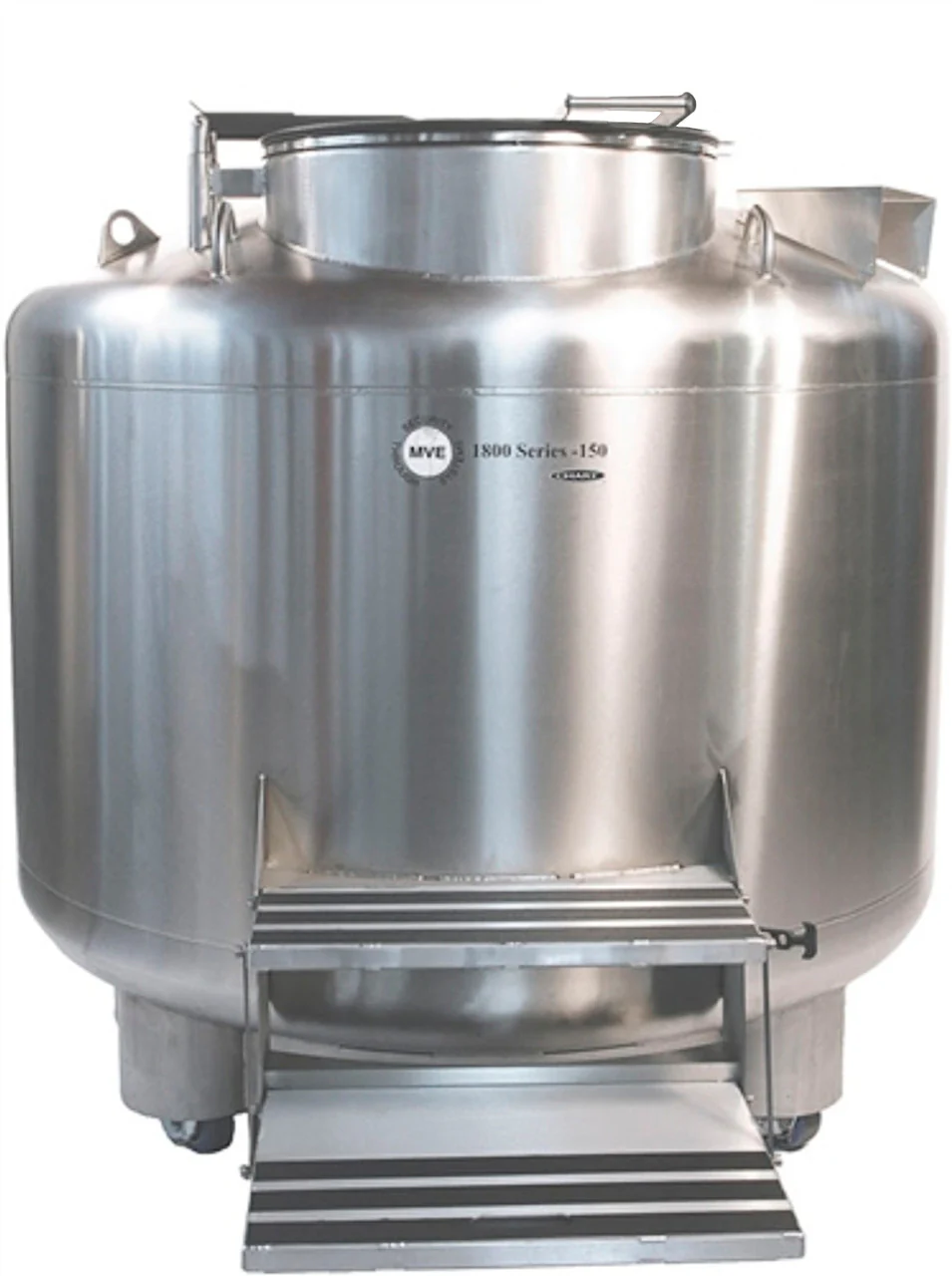

The MVE Series freezers provide stable cryogenic storage for up to 39,000 1.2 / 2.0 ml vials. These freezers provide maximum storage density and provide the industry's longest hold time. Although engineered for liquid storage, the MVE Series freezers can be operated in vapor using available vapor storage accessory packs.

Features include:
• Liquid sample storage
• Wide neck opening
• Lowest lift over height
• Largest LN2 capacity
• Optional Battery Backup



Maximum Storage Capacity

   •  1.2 & 2 ml Vials (Internally Threaded): 39,000
   •  Quantity of Large Racks 100 cell boxes: 28
   •  Quantity of Mini Racks 25 cell boxes: 8
   •  Number of Shelves per Rack: 13
   •  High Security Straw Capacity (0.5 ml): 151,200
   •  Number of Canisters (73 mm): 150
   •  Goblets/Canister : Straws/Goblet: 6 :168

Performance

   • LN2 Capacity w/o Inventory : 673 L

Unit Dimensions

   • Neck Opening: 39.40" (1002 mm)
   • Usable Internal Height: 33.6" (854 mm)
   • Inner Diameter: 39.40" (1002 mm)
   • Overall Height: 54.0" (1372 mm)
   • Door Width Requirement**: 46.8" x 48.9" (1187 x 1242 mm)
   • Weight Empty*: 750 lb. (341 kg)
   • Weight Full* (liquid) est.: 1950 lb. (885 kg)

 TWO Year Parts Warranty • Five Year Vacuum Warranty

*Basic unit without controller and auto fill option



MVE-Series-Animal-Health-Spec-Sheet.pdf

Conforms to MDD 93/42/EEC, the Medical Device Directive for the EU. Freezer systems UL/C-UL Listed.

Additional discounts may be available...Contact us via email to discuss.

You can purchase the freezer on line and we will bill the shipping separately after purchase or email us your shipping address and we can create an invoice for you.
